Fished Joint. Fig. 104.

Material:

2 pieces, a, 6" X 1 1/2" X 7/8".

2 pieces, b, 6" X 1 1/2" X 1/4".

Prepare the pieces by jointing one edge of each and making pieces b of the desired length. Do not work either a or b to width.

1. Fitting the joint: Fit pieces a as in Fig. 92.

2. Smooth and sandpaper both sides of pieces a, (keeping them both of the same thickness.

3. Sandpaper ends of pieces b.

4. Fasten together with either glue or brads, or both, keeping planed edges flush, and ends of pieces b opposite each other.

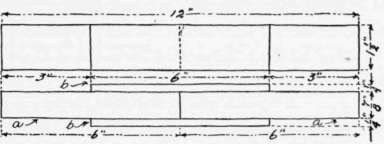

Fig. 104. - Fished Joint.

5. Cut pieces a to the desired length, measuring from the joint, and plane entire model to the desired width.

6. Smooth and sandpaper the entire model.

This is a strong though unsightly joint. The form shown is used in piecing out studding and in other places which are out of sight. If the work is judiciously done, it will be as strong as the material from which it is made. This type of joint is often used upon heavy construction, in which case it is keyed and strapped in order to secure the greatest strength and rigidity.
